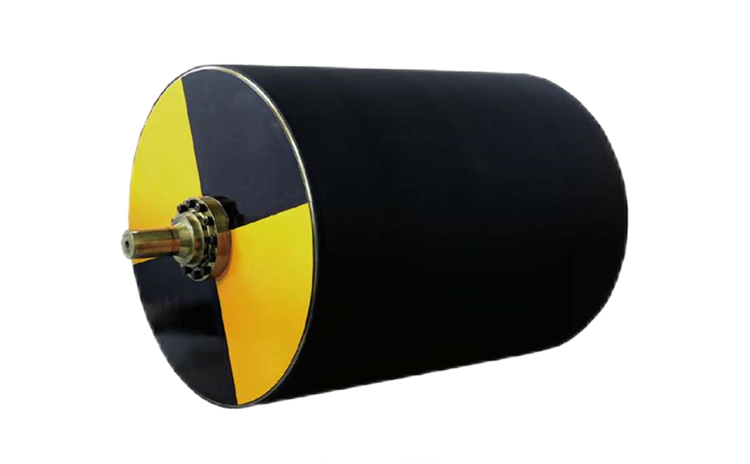

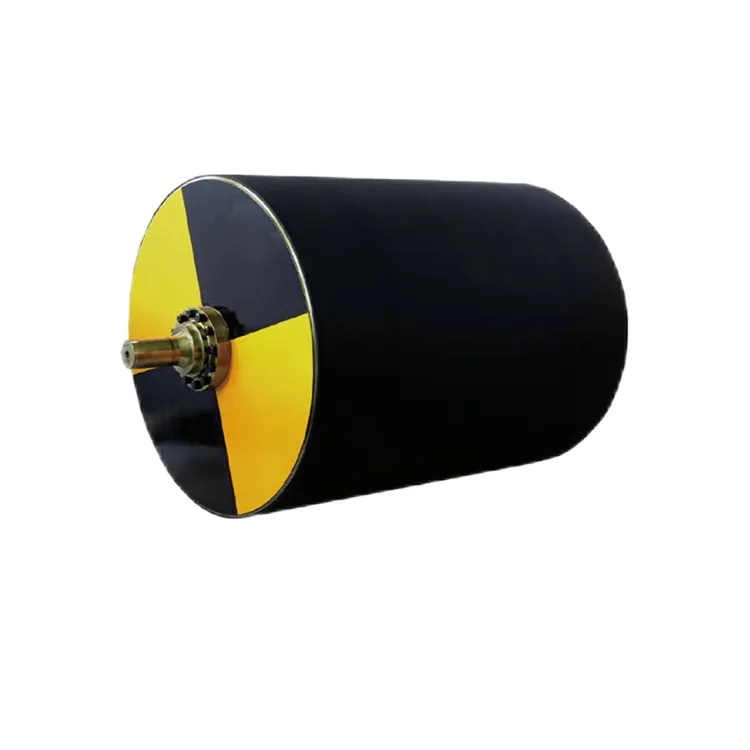

Correction roller, also known as correction device or correction system, is a device used to correct the deviation problem of materials on the production line. Widely used in industries such as printing, packaging, textile, papermaking, plastic film, metal processing, etc., to ensure precise alignment and position control of materials during transportation. The correction roller detects the edge or center position of the material through sensors and automatically adjusts the position of the roller based on the deviation signal, thereby achieving precise correction of the material.

Advantages and Features

High precision control:

The correction roller adopts advanced sensors and control systems, which can achieve millimeter level or even micrometer level correction accuracy, ensuring that the material is always aligned during transportation.

High degree of automation:

The equipment is equipped with an intelligent control system that can monitor the position of materials in real time and automatically adjust, reducing manual intervention and improving production efficiency.

Strong adaptability:

The correction roller can be applied to various materials such as paper, film, fabric, metal strips, etc., and can adapt to production needs of different widths, thicknesses, and speeds.

Good stability:

By using high-quality mechanical structures and durable materials, the correction roller maintains stability during long-term operation, reducing failure rates and maintenance costs.

Easy to operate:

Equipped with a user-friendly interface, users can easily set parameters and monitor device operation status, reducing operational difficulty.

Energy conservation and environmental protection:

The correction roller optimizes the material transmission path, reduces material waste, and lowers energy consumption, in line with the concept of green production.

Application scenarios

printing industry

During the printing process, the correction roller ensures precise alignment of the paper or film on the printing machine, avoiding issues such as inaccurate overprinting and color deviation.

packaging industry

Used for cutting, laminating, and composite processes of packaging materials to ensure neat edges and improve the quality of finished products.

textile industry

In processes such as fabric dyeing, printing, and coating, correction rollers prevent fabric deviation and ensure the uniformity of patterns and colors.

papermaking industry

On the paper production line, the correction roller is used to control the transport path of the paper, avoiding paper wrinkles or tears.

Plastic film industry

In processes such as film stretching, slitting, and lamination, the correction roller ensures the alignment of the film edges and reduces the scrap rate.

Metal processing industry

Used for continuous production of metal strip, ensuring that the strip does not deviate during transportation and improving processing accuracy.

Instructions for Use

Installation and Debugging

Install the correction roller at the appropriate position on the production line to ensure that the sensor can accurately detect the edge or center position of the material.

Connect the power supply and control system, start the equipment and perform preliminary debugging, set the correction range and sensitivity parameters.

Parameter Settings

Adjust the detection range and correction response speed of the sensor based on the width, thickness, and transmission speed of the material.

Set correction modes (such as edge correction and center correction) to adapt to different production needs.

operation monitoring

Start the production line and observe the operation status of the correction roller to ensure alignment during material transportation.

Regularly check the status of sensors and mechanical components to ensure the normal operation of the equipment.

maintenance

Regularly clean the sensor and roller surfaces to avoid dust or dirt affecting detection accuracy.

Check the lubrication condition of mechanical components, add lubricating oil in a timely manner, and extend the service life of equipment.

Common problems and solutions

Insufficient correction accuracy

Reason: Improper sensitivity setting of the sensor or wear of mechanical components.

Solution: Adjust the sensor sensitivity again, check and replace worn parts.

The device is running unstably

Reason: Unstable power supply voltage or control system malfunction.

Solution: Check the power connection to ensure stable voltage; Contact professionals for repairs if necessary.

Inaccurate material edge detection

Reason: There is dirt on the surface of the sensor or reflection on the material surface.

Solution: Clean the surface of the sensor, adjust the light source or replace it with a suitable sensor type.

Slow correction response speed

Reason: Unreasonable control system parameter settings or excessive resistance of mechanical components.

Solution: Optimize control parameters, inspect and lubricate mechanical components.

Excessive equipment noise

Reason: Loose mechanical components or insufficient lubrication.

Solution: Tighten loose parts and add an appropriate amount of lubricating oil.
