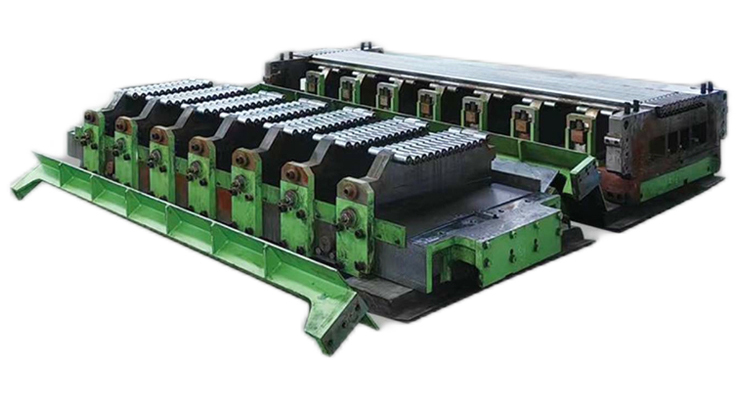

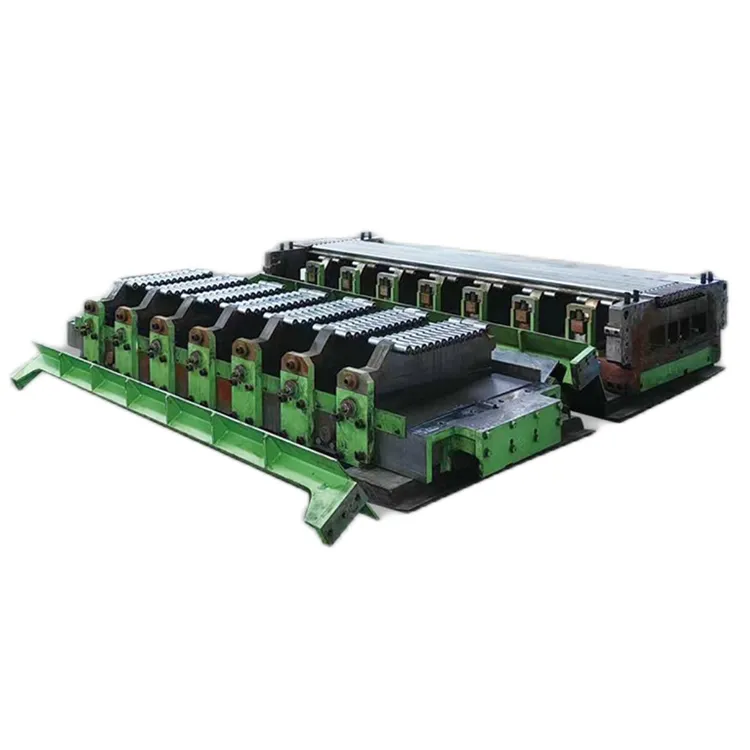

Roller box repair process

1、 Disassemble and classify the Roller box.

2、 Repair the original dimensions of the work roll and intermediate roll.

Remove the work roll and intermediate roll for chromium removal treatment.

Measure the runout of the work roll and intermediate roll after chromium removal treatment on the machine tool. If there is a large runout, it should be straightened.

Fine grinding the work roll, intermediate roll, and then polishing.

Perform chrome plating treatment on the work roll and intermediate roll, with a single-sided chrome plating of about 15 threads. (Due to the chrome plating thickness of the original roller being around 5 threads on one side, as well as the wear and tear after chrome removal and the need for further precision grinding after chrome plating, the thickness of chrome plating on one side should be around 15 threads.)

Refine and polish the chrome plated work roll and intermediate roll to restore their original size.

3、 Support Roller repair.

First, disassemble and clean the support roller.

Workmanship equipment is used to polish the surface of the support roller. (If some of the supporting roller surfaces have a large grinding size, chrome plating is required to restore the uniform size.)

Replace imported bearings, seals, and add oil for assembly.

4、 Clean the roller box and bearing seat, and reinstall the repaired work roller (replace the flat bearings at both ends), middle roller, and support roller.

5、 Installation and debugging.

Advantages and Features

High cost-effectiveness

Compared to replacing the roller box with a brand new one, the cost of repairing the roller box is usually only 30% -50% of the new one, significantly reducing the maintenance cost of enterprise equipment.

Extended service life

Through professional repair techniques, the wear resistance, compression resistance, and accuracy of the roller box can be restored, and the service life can be extended by more than 50%.

environmental protection and energy conservation

Repair technology reduces the consumption of new materials and lowers waste emissions, in line with the concepts of green manufacturing and sustainable development.

Fast and efficient

The repair cycle is short and can usually be completed within a few days, reducing equipment downtime and ensuring production continuity.

customized service

Provide targeted repair plans based on the specific damage situation of the roller box to ensure maximum repair effectiveness.
