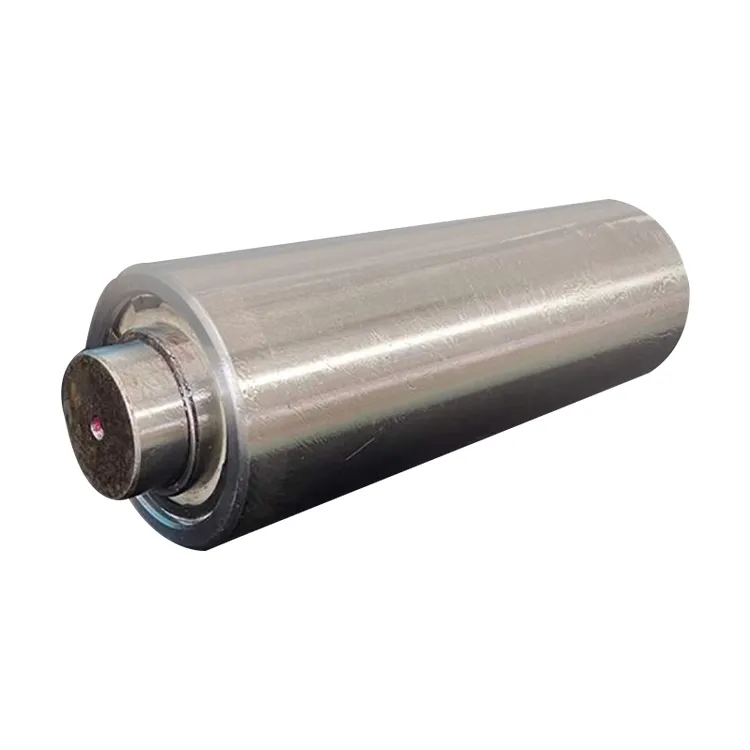

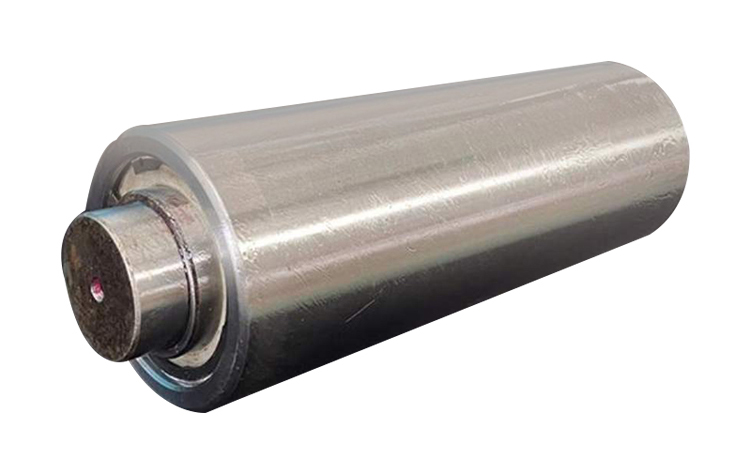

wet scale breaking support rollers:

Application scope: Solid solution

Material selection: GCr15, GCr18Mo.

Process requirements:

1. Quenching and tempering treatment HB280-320.

2. The surface hardness of the roller is HRC60-62, and the depth of the hardened layer is 5-7mm.

3. Radial load Cr=230KN, Cor=370KN; Axial load Ca=45KN, Coa=250KN.

4. The difference in size values between each group shall not exceed 0.005mm.

5. Apply Mobil 460 grease to the shaft raceway, sealing ring lip, and sealing seat groove.

6. Both ends are sealed to prevent water from entering.

Advantages and Features

1. The high-efficiency Wet Descaling Support Roller quickly removes the oxide scale on the surface of the steel plate through high-pressure water flow and mechanical action, significantly improving the surface smoothness and reducing subsequent processing steps.

2. High temperature resistance and wear resistance are achieved by using high-strength alloy materials and special surface treatment processes to ensure that the Support Rollers are not easily deformed in high temperature environments, while also having excellent wear resistance and extending their service life.

3. The environmentally friendly and energy-saving wet treatment technology reduces the dust pollution generated during the dry descaling process, and the water circulation system can effectively save water resources, which meets the requirements of green production.

4. The stable and reliable equipment has a reasonable structural design, operates smoothly, has a low failure rate, can adapt to continuous high-intensity operations, and ensures the stable operation of the production line.

5. Intelligent control is equipped with advanced automation control system, which can automatically adjust water pressure and roll pressure according to parameters such as steel plate thickness and temperature, ensuring consistent descaling effect.

Application scenarios

Wet scale breaking support rollers are widely used in the following scenarios:

Hot rolled steel plate production line: used to remove the oxide scale on the surface of hot-rolled steel plates and improve surface quality.

Stainless steel plate processing: suitable for high-temperature descaling of stainless steel plates to ensure surface smoothness.

Production of special alloy materials: used for surface treatment of high hardness and high wear resistance materials.

Processing of recycled steel: Surface treatment of recycled steel to enhance its reuse value.

Common problems and solutions

1. Poor descaling effect

Reason: Insufficient water pressure or worn support rollers.

Solution: Adjust the water pressure parameters or replace the support rollers.

2. Abnormal operation of equipment

Reason: Motor malfunction or insufficient lubrication.

Solution: Check the operation status of the motor and replenish lubricating oil.

3. Blockage of water circulation system

Reason: There are too many impurities in the water.

Solution: Regularly clean the filter to ensure clean water quality.

4. The surface wear of the support roller is too fast

Reason: Insufficient hardness of the material or high ambient temperature during use.

Solution: Replace the support rollers with higher strength or optimize the production process.
